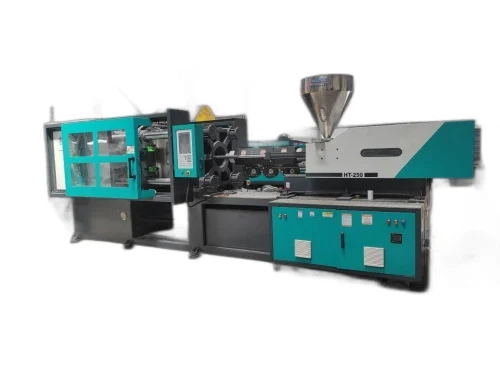

Plastic Injection Moulding Machine

0 Wish listed

Contact supplier Price Request

Overview

Capacity	150 tons/day
Operation Mode	Automatic
Brand	KSB Machinery
Clamping Way	Mechanical
Plastic Type	PP
Clamping Force	150 ton
Machine Weight	6.1 ton
Structure	Horizontal
Oil Tank Capacity	325 ltr
Warranty	1 year
Number Of Phases	3 phase
Pump Driving Motor	14.5 kw
Raw Material	pp
Number Of Tie Bars	4
Opening Stroke	420 mm
Number Of Heating Zones	4
Screw Speed	286 rpm
Max. Daylight	971 mm
Screw Diameter	45 mm
L/D Ratio	18.5
Product Type	filter
Platen Size	680 X 680 mm
Ejector Stroke	4.4 ton
Injection Shot Capacity	252 gm
Screw Stroke	180 mm
Heating Capacity	7.5 kw
No Of Cooling Fan	4
Screw Ld Ratio	18.5
I Deal In	New Only
Country of Origin	Made in India

KSB Machinery is located in ahmedabad,Gujarat, India. Our company is long engaged in the professional manufacture of high precision injection molding machine. We have successively introduced machine with clamping force from 80-400 tons. Some of the most demanded products of our company like Servo Motor Injection Moulding Machines, Horizontal Injection Moulding Machines, Sprinkler Injection Moulding Machines, Plastic Injection Moulding Machines, Toggle Injection Moulding Machines, Vertical Injection moulding machine.
